DiagRA® LE
The solution for motorsport and special requirements.
DiagRA® LE
DiagRA® LE is the diagnostic and flash tool that is individually adapted to each customer and optimized for specific applications. Functions can be adapted for different users and therefore ideally used in any scenario. Two modes are available: the automatic mode, which carries out predefined processes, and the analysis mode, in which all functions can be used manually.
Your Benefits
Use all the advantages DiagRA® LE provides. You will receive a tool that is tailor-made for your purpose. The entire user interface is optimized to work with touchscreen monitors.
Customization
The range of functions can be adapted to fit any purpose.
Manual And Automatic Mode
Run predefined processes automatically or use all functions manually.
Flash Programming Plugin
Execute complex flash functions easily from DiagRA® LE.
Customized Solutions For Diagnostics.
The functionalities in DiagRA® LE can be divided into a manual and an automatic mode. The range of functions extends from the simple reading of error codes to script processing using an easy-to-learn script language. Scripts, diagnostic data sets, configuration data and output data can be encrypted at the customer’s request. Read data can be exported in CSV, XML and TXT format. In addition, DiagRA® LE includes a fully compliant optional OBD scan tool function according to SAE J1979 and SAE J1939.
Feature Overview
DiagRA® LE provides you with the exact functions you need. This makes DiagRA® LE so versatile and covers any special application. By adapting and optimizing the range of functions based on your specifications, work is made much easier.
Fully integrated OBD scan tool
DiagRA® LE includes an OBDII / EOBD and HD-OBD scan tool that is SAE J1979 and SAE J1939 compliant.
Pre-Configurable Measurement Sequences
Various measurement processes can be preconfigured and can be started and carried out automatically.
Embed Customer Documents
Customer documents can be embedded and linked to a specific functionality.
Flash-Programmierung Plugin
Our plug-in for flash programming can be used with SGM / SGO, HEX / S19 and ODX flash data, encrypted or unencrypted.
Automatic Mode
Automatically carry out DiagRA® LE predefined processes.

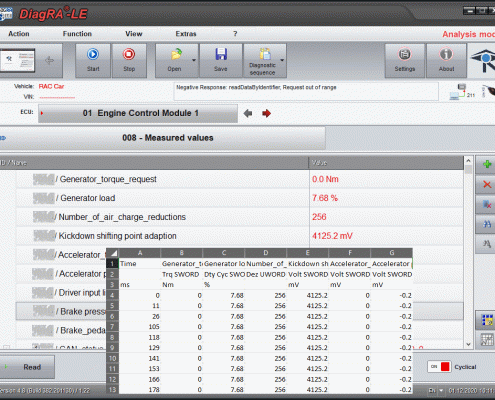

Recording Of Measured Values
Measured values read continuously can be recorded in CSV, XML and TXT format.
DiagRA® LE supports:
| Protocols | UDS, KWP 2000, SAE J1939, SAE J1979 |
| Interfaces | SAE J2534 PassThru, RP1210 or other Providers, also expandable on request |
| Export Formats | CSV, XML, TXT |
| Flash Formats | SGM/SGO, HEX/S19, ODX, encrypted and unencrypted |
| Standards | SAE J1939, SAE J1979, SAE J2534 PassThru, RP1210 |
DiagRA® LE
the only diagnostic and flash tool that can be customized and adapted to specific application scenarios.
Technical Specification
| Protocols | UDS, KWP 2000, SAE J1939, SAE J1979 |
| Interfaces | SAE J2534 PassThru, RP1210 or other Providers, also expandable on request |
| Export Formats | CSV, XML, TXT |
| Flash Formats | SGM/SGO, HEX/S19, ODX, encrypted and unencrypted |
| Standards | SAE J1939, SAE J1979, SAE J2534 PassThru, RP1210 |
| System Requirement (minimal) | Processor: 32 and 64bit (32bit-Application) Disk Space: 180MB RAM: min 100MB Windows: 7 and later Standard Graphics Card USB/Ethernet/RS232, depending on the Vehicle Communication Interface |
| System Requirement (recommended) | Processor: 32 and 64bit (32bit-Application) Disk Space: 1GB RAM: 2GB Windows: 7 and later Standard Graphics Card USB/Ethernet/RS232, depending on the Vehicle Communication Interface |
